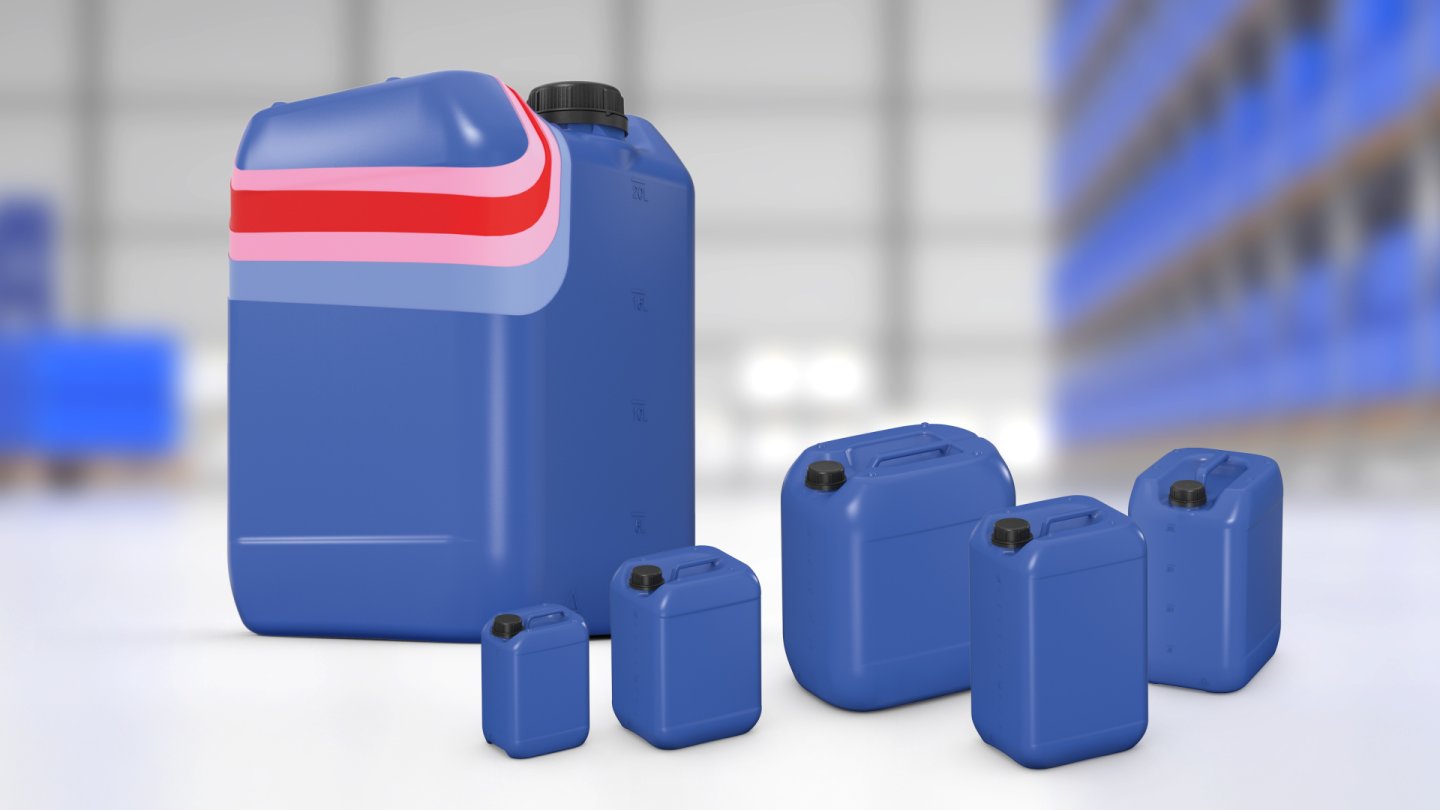

SCHÜTZ SC2 & F-STYLE JERRYCANS – WITH OPTIONAL PERMEATION PROTECTION THANKS TO 6-LAYER TECHNOLOGY.

Building on the success of the SC1 series, we are continuously developing our global jerrycan range. The new SC2 jerrycan series and the F-Style model (exclusively for North America) expand our product portfolio to include storage and transport solutions for small filling quantities.

The new generation of jerrycans is perfectly suited for a wide variety of applications:

The SC2 series is available in sizes from 5 to 30 litres.
F-Style and special US SC2 jerrycans (2.5 to 6 gallons) comply exactly with the standard dimensions used in the North American markets.
The anatomically shaped handle and flattened corners around the cap guarantee comfortable handling and ideal residual emptying.
Optionally available in FOODCERT and CLEANCERT quality for sensitive applications.
Also available in the GREEN LAYER version.

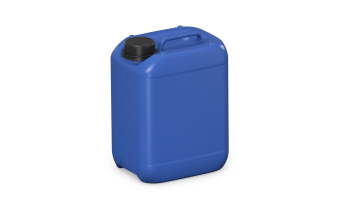

5 litres – SCHÜTZ SC2 05 jerrycan

Article name SC2 05 jerrycan
Cap size DN 45 oder DN 55 (DN 51)
Overflow volume 5.4 litres
Length 190 mm
Width 145 mm
Height 254 mm
Label area width 145 mm
Label area height 160 mm
Approval Y1.9 oder X1.9

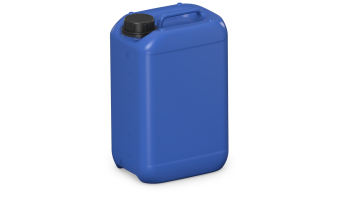

6 litres – SCHÜTZ SC2 06 jerrycan

Article name SC2 06 jerrycan
Cap size DN 45 oder DN 55 (DN 51)
Overflow volume 6.5 litres
Length 190 mm
Width 145 mm
Height 299 mm
Label area width 145 mm
Label area height 205 mm
Approval Y1.9 oder X1.9

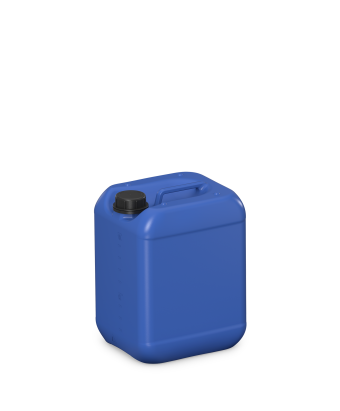

10 litres – SCHÜTZ SC2 10 jerrycan

Article name SC2 10 jerrycan
Cap size DN 45 oder DN 55 (DN 51)
Overflow volume 11.0 litres
Length 230 mm
Width 200 mm
Height 300 mm
Label area width 200 mm
Label area height 188 mm
Approval Y1.9 oder X1.9

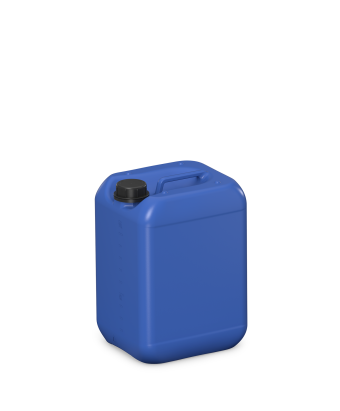

11 litres – SCHÜTZ SC2 11 jerrycan

Article name SC2 11 jerrycan
Cap size DN 45 oder DN 55 (DN 51)
Overflow volume 12.0 litres
Length 230 mm
Width 200 mm
Height 322 mm
Label area width 200 mm
Label area height 215 mm
Approval Y1.9 oder X1.9

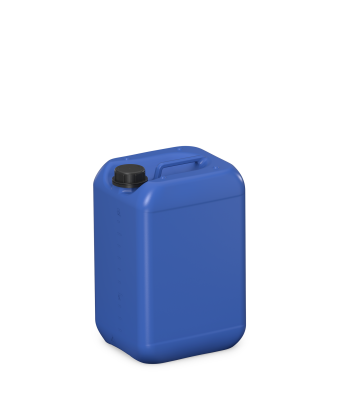

12 litres – SCHÜTZ SC2 10 jerrycan

Article name SC2 12 jerrycan
Cap size DN 45 oder DN 55 (DN 51)
Overflow volume 13.2 litres
Length 230 mm
Width 200 mm
Height 350 mm
Label area width 200 mm
Label area height 243 mm
Approval Y1.9 oder X1.9

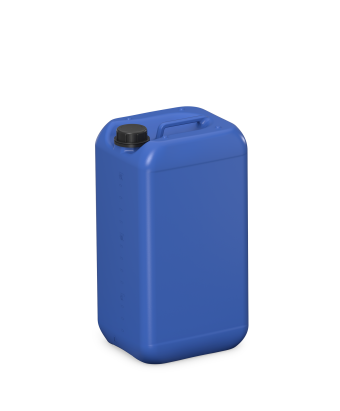

15 litres – SCHÜTZ SC2 15 jerrycan

Article name SC2 15 jerrycan
Cap size DN 45 oder DN 55 (DN 51)
Overflow volume 16.5 litres
Length 230 mm
Width 200 mm
Height 426 mm
Label area width 200 mm
Label area height 319 mm
Approval Y1.9 oder X1.9

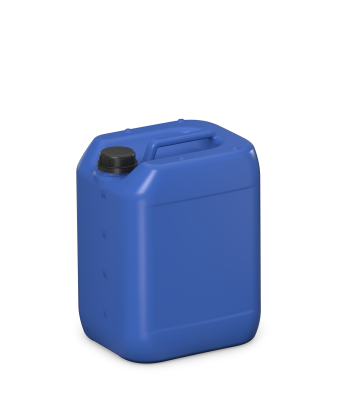

20 litres – SCHÜTZ SC2 20 jerrycan

Article name SC2 20 jerrycan
Cap size DN 60
Overflow volume 21.9 litres
Length 290 mm
Width 250 mm
Height 383 mm
Label area width 202 mm
Label area height 230 mm
Approval Y1.9 oder X1.9

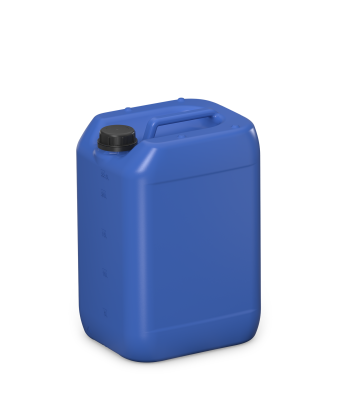

22.5 litres – SCHÜTZ SC2 20 jerrycan

Article name SC2 22.5 jerrycan
Cap size DN 60
Overflow volume 24.75 litres
Length 290 mm
Width 250 mm
Height 429 mm
Label area width 202 mm
Label area height 275 mm
Approval Y1.9 oder X1.9

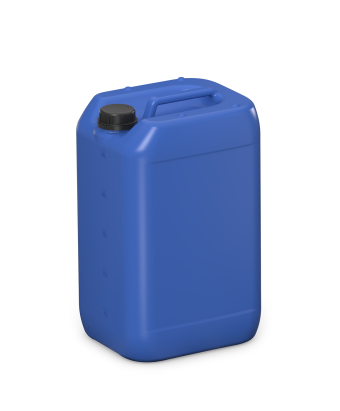

25 litres – SCHÜTZ SC2 25 jerrycan

Article name SC2 25 jerrycan
Cap size DN 60
Overflow volume 27 litres
Length 290 mm
Width 250 mm
Height 460 mm
Label area width 202 mm
Label area height 230 mm
Approval Y1.9 oder X1.9

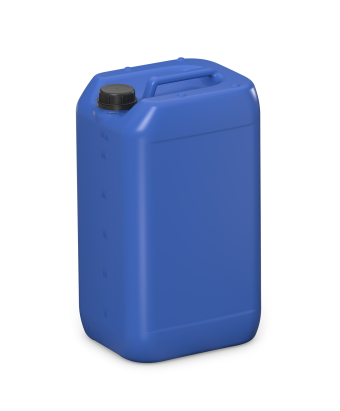

27.5 litres – SCHÜTZ SC2 20 jerrycan

Article name SC2 27.5 jerrycan
Cap size DN 60
Overflow volume 30.1 litres
Length 290 mm
Width 250 mm
Height 505 mm
Label area width 202 mm
Label area height 351 mm
Approval Y1.9 oder X1.9

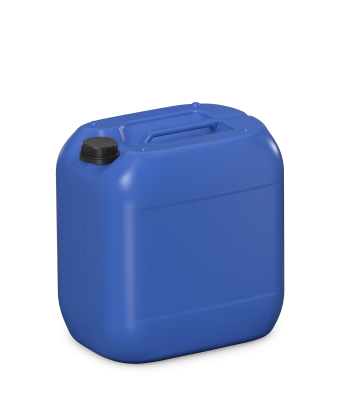

30 litres – SCHÜTZ SC2 30 jerrycan

Article name SC2 30 jerrycan
Cap size DN 60
Overflow volume 32.3 litres
Length 368 mm
Width 275 mm
Height 410 mm
Label area width 273 mm
Label area height 200 mm
Approval Y1.9 oder X1.9

Jerrycans for the North American market:

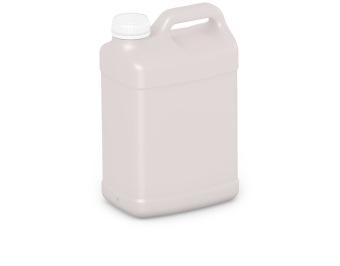

2,5 gallons – SCHÜTZ F-Style jerrycan

Article name US F-Style 2.5 gallons
Cap size DN 63
Overflow volume min. 2.9 gallons
Length 232 mm
Width 169 mm
Height 363 mm
Label area width 182 mm
Label area height 204 mm
Approval Y1.5

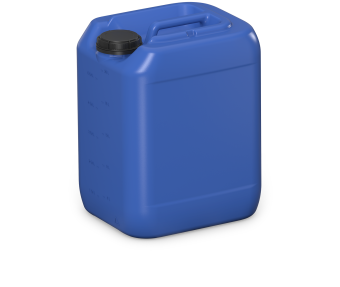

5 gallons – SCHÜTZ SC2 jerrycan

Article name US SC2 5 gallons
Cap size DN 60
Overflow volume min. 5.3 gallons
Length 290 mm
Width 250 mm
Height 370 mm
Label area width 202 mm
Label area height 224 mm
Approval Y1.8 / X1.8

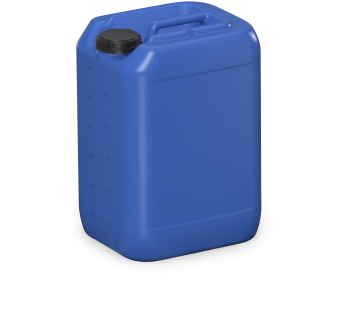

6 gallons – SCHÜTZ SC2 jerrycan

Article name US SC2 6 gallons
Cap size DN 63
Overflow volume min. 6.4 gallons
Length 290 mm
Width 250 mm
Height 416 mm
Label area width 202 mm
Label area height 270 mm
Approval Y1.8 / X1.8
