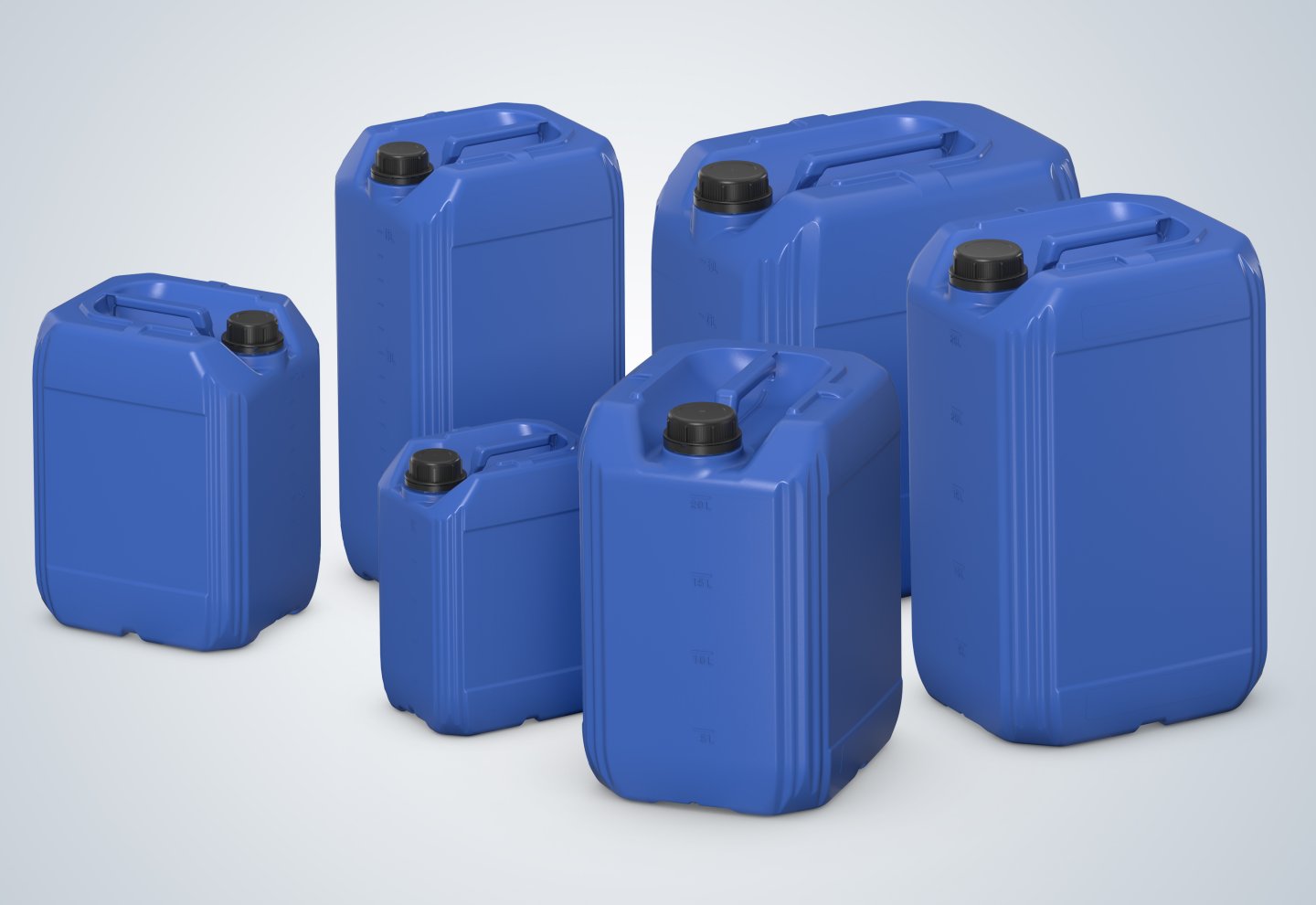

SCHÜTZ SC1 JERRYCANS – The solution for small filling quantities from 5 to 30 litres.

Available in six different sizes with different configurations
and colour variations:

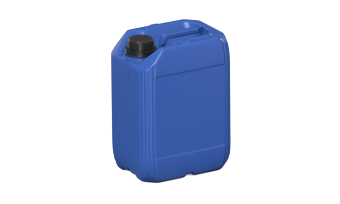

5 Litres – SCHÜTZ SC1 05 Jerrycan

Articlel name
SC1 05 Jerrycan
Cap size
DN 45 or DN 55
Overflow volumen
5.4 Litres
Length
190 mm
Width
145 mm
Height
255 mm
Label area width
145 mm
Label area hight
150 mm
Approval
Y1.9 or X1.9

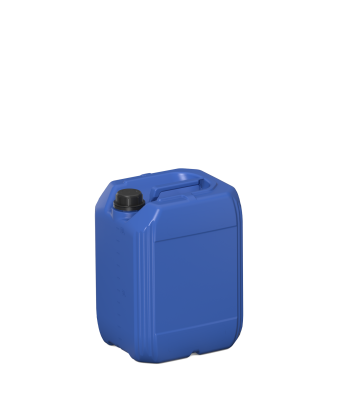

10 Litres – SCHÜTZ SC1 10 Jerrycan

Articlel name
SC1 10 Jerrycan
Cap size
DN 45 or DN 55
Overflow volumen
10.9 litres
Length
230 mm
Width
200 mm
Height
300 mm
Label area width
171 mm
Label area hight
170 mm
Approval
Y1.9 or X1.9

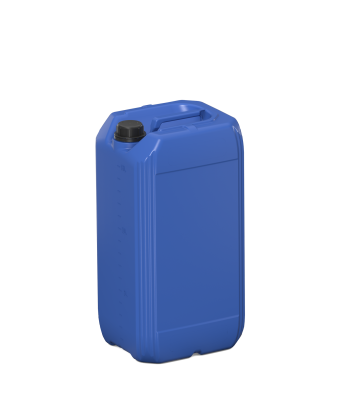

15 Litres – SCHÜTZ SC1 15 Jerrycan

Articlel name
SC1 15 Jerrycan
Cap size
DN 45 or DN 55
Overflow volumen
16.5 litres
Length
230 mm
Width
200 mm
Height
430 mm
Label area width
171 mm
Label area hight
293 mm
Approval
Y1.9 or X1.9

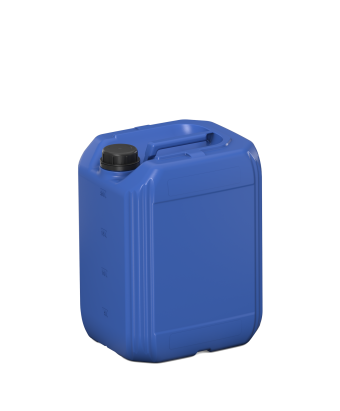

20 Litres – SCHÜTZ SC1 20 Jerrycan

Articlel name
SC1 20 Jerrycan
Cap size
DN 60
Overflow volumen
22.4 litres
Length
290 mm
Width
255 mm
Height
383 mm
Label area width
200 mm
Label area hight
249 mm
Approval
Y1.9 or X1.9

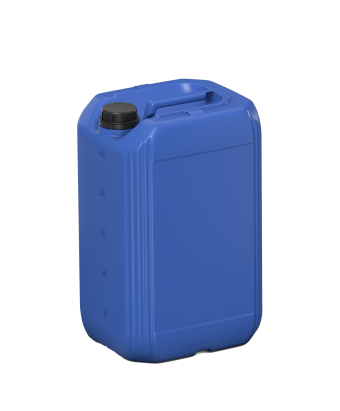

25 Litres – SCHÜTZ SC1 25 Jerrycan

Articlel name
SC1 25 Jerrycan
Cap size
DN 60
Overflow volumen
27.4 litres
Length
290 mm
Width
255 mm
Height
455 mm
Label area width
200 mm
Label area hight
321 mm
Approval
Y1.9 or X1.9

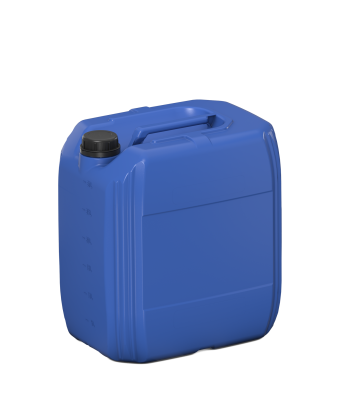

30 Litres – SCHÜTZ SC1 30 Jerrycan

Articlel name
SC1 30 Jerrycan
Cap size
DN 60
Overflow volumen
32.3 litres
Length
378 mm
Width
280 mm
Height
400 mm
Label area width
225 mm
Label area hight
290 mm
Approval
Y1.9 or X1.9

SCHÜTZ stands for innovative and high quality plastic packaging – our new SC1 jerrycans offer:

Maximum user-friendliness
Safe handling and stacking
Excellent residual emptying
UN approval included (BAM)

Production on the latest, fully electric equipment generation with state-of-the-art 3-layer technology:

Maximum efficiency, quality and cleanliness in the production process
Uniform wall thicknesses with optimum use of material
Problem-free use of plastic regranulate in the middle layer in the future
