SCHÜTZ SDF – corrugated open-head drums suitable for container loading.

The classic form of industrial bulk packaging offers optimum protection for the transport of solid or liquid products in UN packaging groups I, II and III.


Advantages:

  • Cold-rolled thin sheet DC01Am compliant with DIN 10130
  • Welded shell, flattened welding seam at fold and border area, bottom with triple safety seam
  • Two rolling or negative hoops, additional reinforced hoops available on request
  • Processing of varying material thicknesses: 0.8 – 1.2 mm
  • Completely removable lid, available upon request with safety screw fitting G2 and G3/4, on opposite sides of lid. Gasket ring of cellular rubber. Additional filling hole NW180 available
  • Clamp-ring of galvanized hoop with lever lock
  • Inner surface protection: plain steel or lacquer-lined, prepared for the filling goods by stability test
  • Exterior: coating in the colour of your choice, solid or multiple colours
  • Special designs available on request
Brochure SCHÜTZ PE Drums | Steel Drums
Download PDF

Product Variants*

FOR SOLID AND VISCOUS GOODS

FOR FLUID GOODS

FOR SOLID AND VISCOUS GOODS

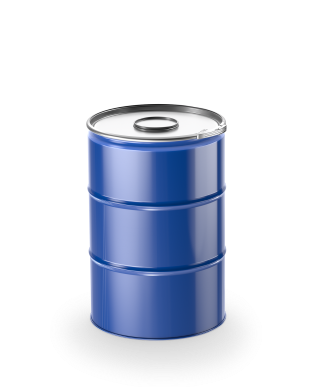

210 Litres

SDF CORRUGATED OPEN-HEAD DRUM

Product details
Exterior height869 mm
Exterior diameter585 mm
Hazardous goods certification (min.)UN 1A2/X300/S
add to watchlist
Product details
Exterior height869 mm
Exterior diameter585 mm
Hazardous goods certification (min.)UN 1A2/X300/S
add to watchlist

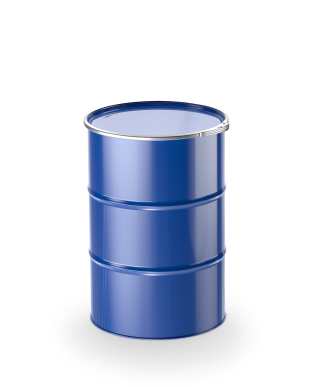

213 Litres

SDF CORRUGATED OPEN-HEAD DRUM

Product details
Exterior height880 mm
Exterior diameter605 mm
Hazardous goods certification (min.)UN 1A2/Y270/S
add to watchlist
Product details
Exterior height880 mm
Exterior diameter605 mm
Hazardous goods certification (min.)UN 1A2/Y270/S
add to watchlist

FOR FLUID GOODS

210 Litres

SDF CORRUGATED OPEN-HEAD DRUM

Product details
Exterior height871 mm
Exterior diameter585 mm
Hazardous goods certification (min.)UN 1A2/Y/120/
add to watchlist
Product details
Exterior height871 mm
Exterior diameter585 mm
Hazardous goods certification (min.)UN 1A2/Y/120/
add to watchlist
213 Litres

SDF CORRUGATED OPEN-HEAD DRUM

Product details
Exterior height880 mm
Exterior diameter605 mm
Hazardous goods certification (min.)UN 1A2/Y/100/
add to watchlist
Product details
Exterior height880 mm
Exterior diameter605 mm
Hazardous goods certification (min.)UN 1A2/Y/100/
add to watchlist
Product details
Exterior height869 mm
Exterior diameter585 mm
Hazardous goods certification (min.)UN 1A2/X300/S
add to watchlist
Product details
Exterior height880 mm
Exterior diameter605 mm
Hazardous goods certification (min.)UN 1A2/Y270/S
add to watchlist
Product details
Exterior height871 mm
Exterior diameter585 mm
Hazardous goods certification (min.)UN 1A2/Y/120/
add to watchlist
Product details
Exterior height880 mm
Exterior diameter605 mm
Hazardous goods certification (min.)UN 1A2/Y/100/
add to watchlist
*The drum types and tight-head variations shown here comprise our standard line. We will be glad to answer your enquiries about customized designs and additional technical details regarding the drum types shown here.

Automatic drum emptying



When working with viscous and highly viscous media it is often necessary to use drum pumps that use high pressure to automatically empty the drums.


An example of a product solution:

SCHÜTZ 213 L CYLINDRICAL STEEL OPEN-HEAD DRUM

  • Developed specially for automatic emptying
  • Stable version without hoops
  • Outstanding residual emptying characteristics
add to watchlist

INDIVIDUAL BRANDING




Emphasise your brand with an unmistakable drum design:


  • We can produce steel drums with high-quality stove enamelling in any colour according to your exact wishes.
  • Additional markings – e.g. your logo – can be printed in a single or multi-colour screen print process.
