SCHÜTZ’s SC1 jerrycan series is a modern solution for smaller filling quantities. Manufactured on highly automated blow moulding systems, SC1 jerrycans offer low weight, maximum dimensional stability and an ergonomic design for easy handling.
NEW: Our SC1 jerrycans are now also available in the proven SCHÜTZ FOODCERT and CLEANCERT versions.

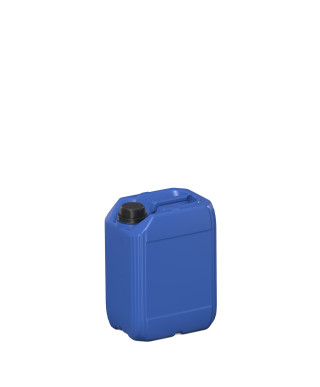

SC1 Jerrycan
| Articlel name | SC1 10 Jerrycan |
| Cap size | DN 45 or DN 55 (DN 51) |
| Overflow volumen | 5.4 Litres |
| Length | 190 mm |
| Width | 145 mm |
| Height | 255 mm |
| Label area width | 255 mm |
| Label area hight | 150 mm |
| Approval | Y1.9 or X1.9 |
| Articlel name | SC1 10 Jerrycan |
| Cap size | DN 45 or DN 55 (DN 51) |
| Overflow volumen | 5.4 Litres |
| Length | 190 mm |
| Width | 145 mm |
| Height | 255 mm |
| Label area width | 255 mm |
| Label area hight | 150 mm |
| Approval | Y1.9 or X1.9 |
SC1 Jerrycan

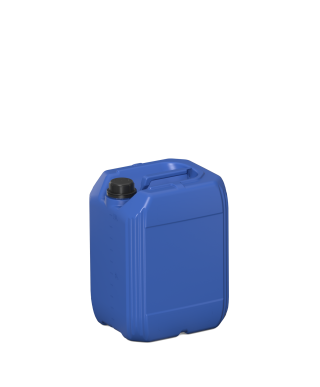

| Articlel name | SC1 10 Jerrycan |
| Cap size | DN 45 or DN 55 (DN 51) |
| Overflow volumen | 10.9 Litres |
| Length | 230 mm |
| Width | 200 mm |
| Height | 300 mm |
| Label area width | 171 mm |
| Label area hight | 170 mm |
| Approval | Y1.9 or X1.9 |
| Articlel name | SC1 10 Jerrycan |
| Cap size | DN 45 or DN 55 (DN 51) |
| Overflow volumen | 10.9 Litres |
| Length | 230 mm |
| Width | 200 mm |
| Height | 300 mm |
| Label area width | 171 mm |
| Label area hight | 170 mm |
| Approval | Y1.9 or X1.9 |

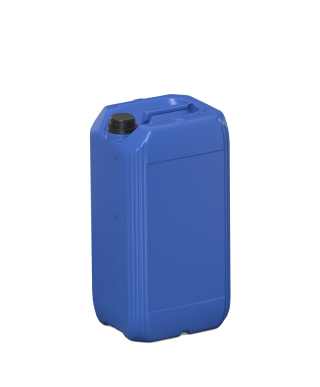

SC1 Jerrycan
| Articlel name | SC1 15 Jerrycan |
| Cap size | DN 45 or DN 55 (DN 51) |
| Overflow volumen | 16.5 Litres |
| Length | 230 mm |
| Width | 200 mm |
| Height | 430 mm |
| Label area width | 171 mm |
| Label area hight | 293 mm |
| Approval | Y1.9 or X1.9 |
| Articlel name | SC1 15 Jerrycan |
| Cap size | DN 45 or DN 55 (DN 51) |
| Overflow volumen | 16.5 Litres |
| Length | 230 mm |
| Width | 200 mm |
| Height | 430 mm |
| Label area width | 171 mm |
| Label area hight | 293 mm |
| Approval | Y1.9 or X1.9 |

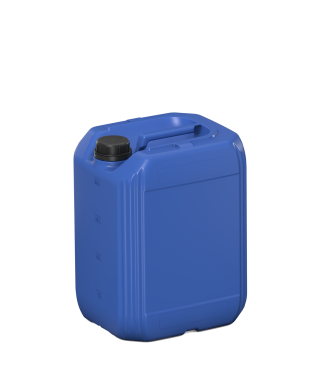

SC1 Jerrycan
| Articlel name | SC1 20 Jerrycan |
| Cap size | DN 60 |
| Overflow volumen | 22.4 Litres |
| Length | 290 mm |
| Width | 255 mm |
| Height | 383 mm |
| Label area width | 200 mm |
| Label area hight | 249 mm |
| Approval | Y1.9 or X1.9 |
| Articlel name | SC1 20 Jerrycan |
| Cap size | DN 60 |
| Overflow volumen | 22.4 Litres |
| Length | 290 mm |
| Width | 255 mm |
| Height | 383 mm |
| Label area width | 200 mm |
| Label area hight | 249 mm |
| Approval | Y1.9 or X1.9 |
SC1 Jerrycan

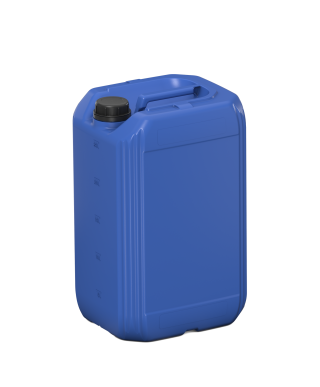

| Articlel name | SC1 25 Jerrycan |
| Cap size | DN 60 |
| Overflow volumen | 27.4 Litres |
| Length | 290 mm |
| Width | 255 mm |
| Height | 455 mm |
| Label area width | 200 mm |
| Label area hight | 321 mm |
| Approval | Y1.9 or X1.9 |
| Articlel name | SC1 25 Jerrycan |
| Cap size | DN 60 |
| Overflow volumen | 27.4 Litres |
| Length | 290 mm |
| Width | 255 mm |
| Height | 455 mm |
| Label area width | 200 mm |
| Label area hight | 321 mm |
| Approval | Y1.9 or X1.9 |

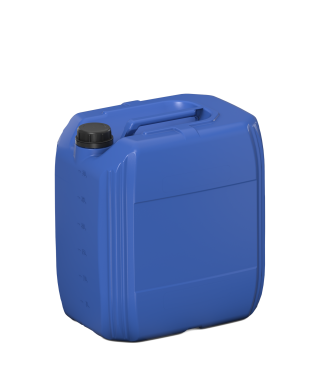

SC1 Jerrycan
| Articlel name | SC1 30 Jerrycan |
| Cap size | DN 60 |
| Overflow volumen | 32.3 Litres |
| Length | 378 mm |
| Width | 280 mm |
| Height | 400 mm |
| Label area width | 225 mm |
| Label area hight | 290 mm |
| Approval | Y1.9 or X1.9 |
| Articlel name | SC1 30 Jerrycan |
| Cap size | DN 60 |
| Overflow volumen | 32.3 Litres |
| Length | 378 mm |
| Width | 280 mm |
| Height | 400 mm |
| Label area width | 225 mm |
| Label area hight | 290 mm |
| Approval | Y1.9 or X1.9 |
| Articlel name | SC1 10 Jerrycan |
| Cap size | DN 45 or DN 55 (DN 51) |
| Overflow volumen | 5.4 Litres |
| Length | 190 mm |
| Width | 145 mm |
| Height | 255 mm |
| Label area width | 255 mm |
| Label area hight | 150 mm |
| Approval | Y1.9 or X1.9 |
| Articlel name | SC1 10 Jerrycan |
| Cap size | DN 45 or DN 55 (DN 51) |
| Overflow volumen | 10.9 Litres |
| Length | 230 mm |
| Width | 200 mm |
| Height | 300 mm |
| Label area width | 171 mm |
| Label area hight | 170 mm |
| Approval | Y1.9 or X1.9 |
| Articlel name | SC1 15 Jerrycan |
| Cap size | DN 45 or DN 55 (DN 51) |
| Overflow volumen | 16.5 Litres |
| Length | 230 mm |
| Width | 200 mm |
| Height | 430 mm |
| Label area width | 171 mm |
| Label area hight | 293 mm |
| Approval | Y1.9 or X1.9 |
| Articlel name | SC1 20 Jerrycan |
| Cap size | DN 60 |
| Overflow volumen | 22.4 Litres |
| Length | 290 mm |
| Width | 255 mm |
| Height | 383 mm |
| Label area width | 200 mm |
| Label area hight | 249 mm |
| Approval | Y1.9 or X1.9 |
| Articlel name | SC1 25 Jerrycan |
| Cap size | DN 60 |
| Overflow volumen | 27.4 Litres |
| Length | 290 mm |
| Width | 255 mm |
| Height | 455 mm |
| Label area width | 200 mm |
| Label area hight | 321 mm |
| Approval | Y1.9 or X1.9 |
| Articlel name | SC1 30 Jerrycan |
| Cap size | DN 60 |
| Overflow volumen | 32.3 Litres |
| Length | 378 mm |
| Width | 280 mm |
| Height | 400 mm |
| Label area width | 225 mm |
| Label area hight | 290 mm |
| Approval | Y1.9 or X1.9 |
SCHÜTZ SC1 jerrycans are manufactured using the latest, fully electric generation of equipment, ensuring a production process with maximum efficiency, quality and cleanliness.

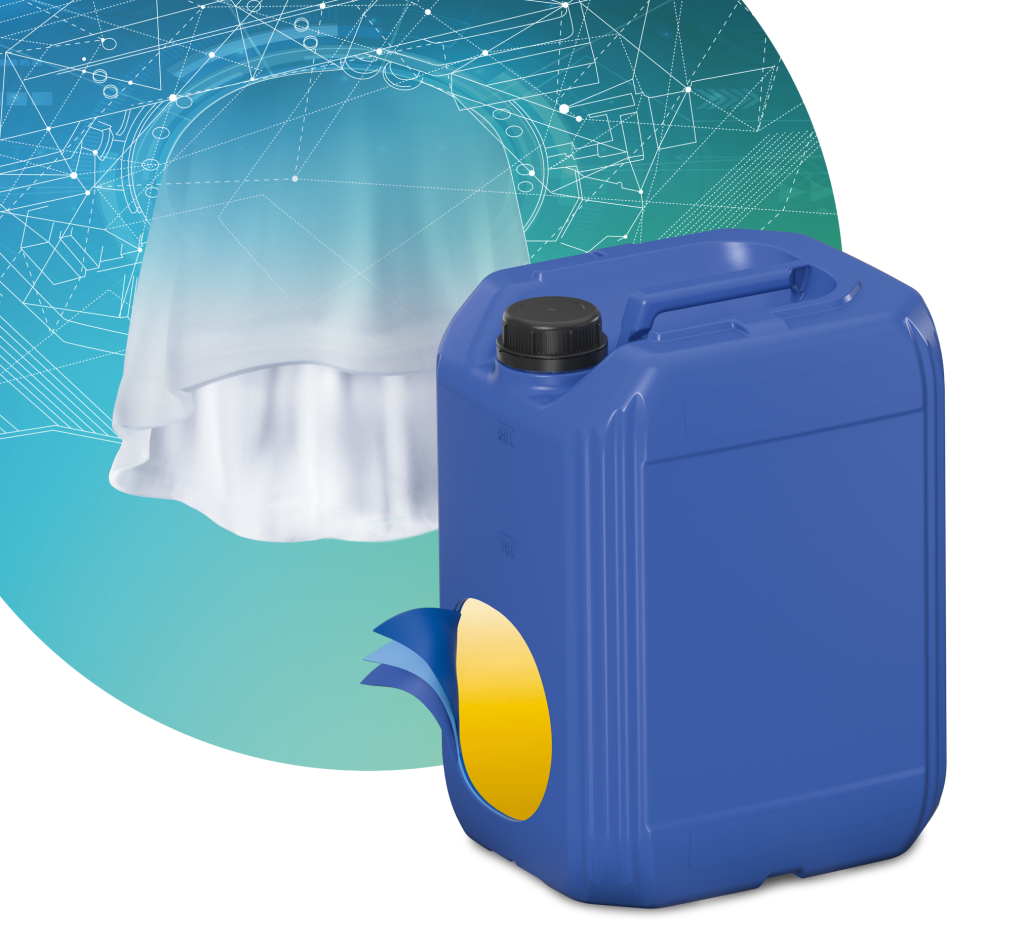

Our outstanding technical expertise in multi-layer extrusion makes optimum use of the material and guarantees jerrycans with uniformly thick walls.
Our new jerrycans combine SCHÜTZ’s unique expertise in extrusion blow moulding with smart packaging design. The result is a product that offers superior overall performance.
The premium standard for food products – offers maximum food safety in terms of material, manufacturing process and the end product:

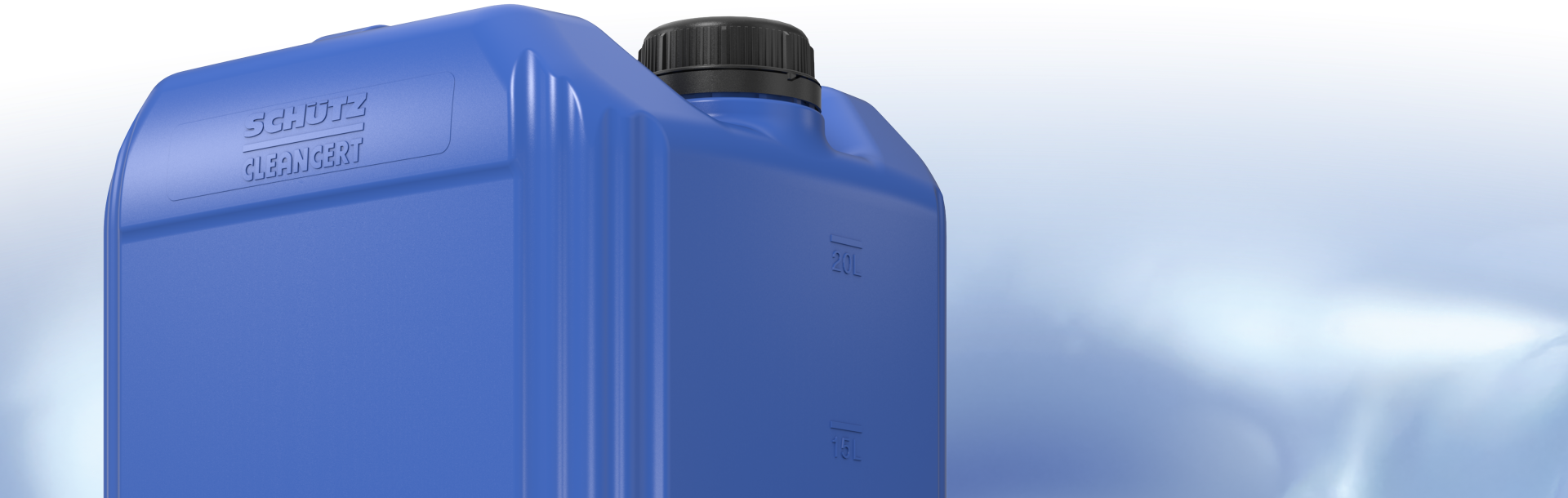

CLEANCERT offers maximum technical cleanliness for quality-critical applications. Ideal for cosmetics, pharmaceuticals, paints/coatings and the semiconductor industry:
The SCHÜTZ production system is certified according to international standards and complies with the highest requirements in safety, health protection, environmental and quality management.
SCHÜTZ SC1 jerrycans have dangerous goods approval from the renowned German Federal Institute for Materials Research and Testing (BAM) and are subject to permanent quality testing and control during production, backed by regular practical and laboratory tests in our own test laboratories.
THREAD AND OPTIONS
Please contact us!
Pick the SC1 jerrycan that matches your exact requirements! We will be happy to advise you!

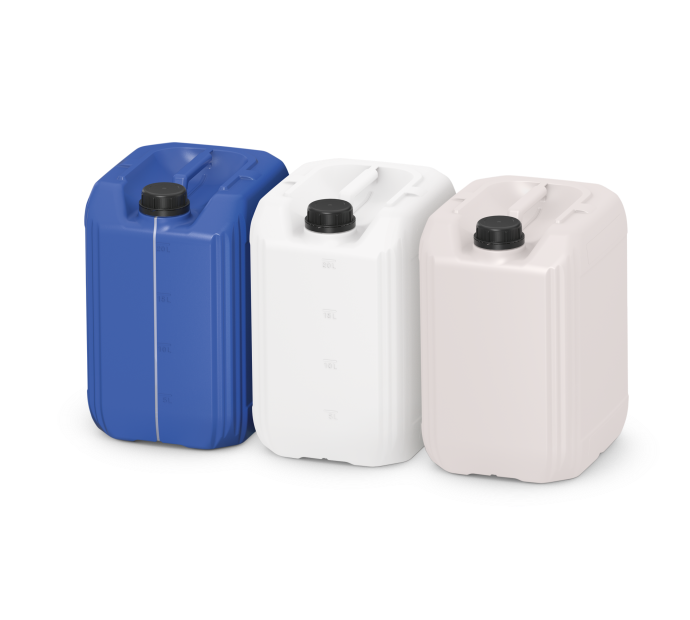

Jerrycan colours
All SCHÜTZ jerrycans are available in
three standard colours.
Filling gauge
Depending on the selected jerrycan colour and your filling product, we can supply an embossed litre gauge, with an additional transparent gauge
as required.

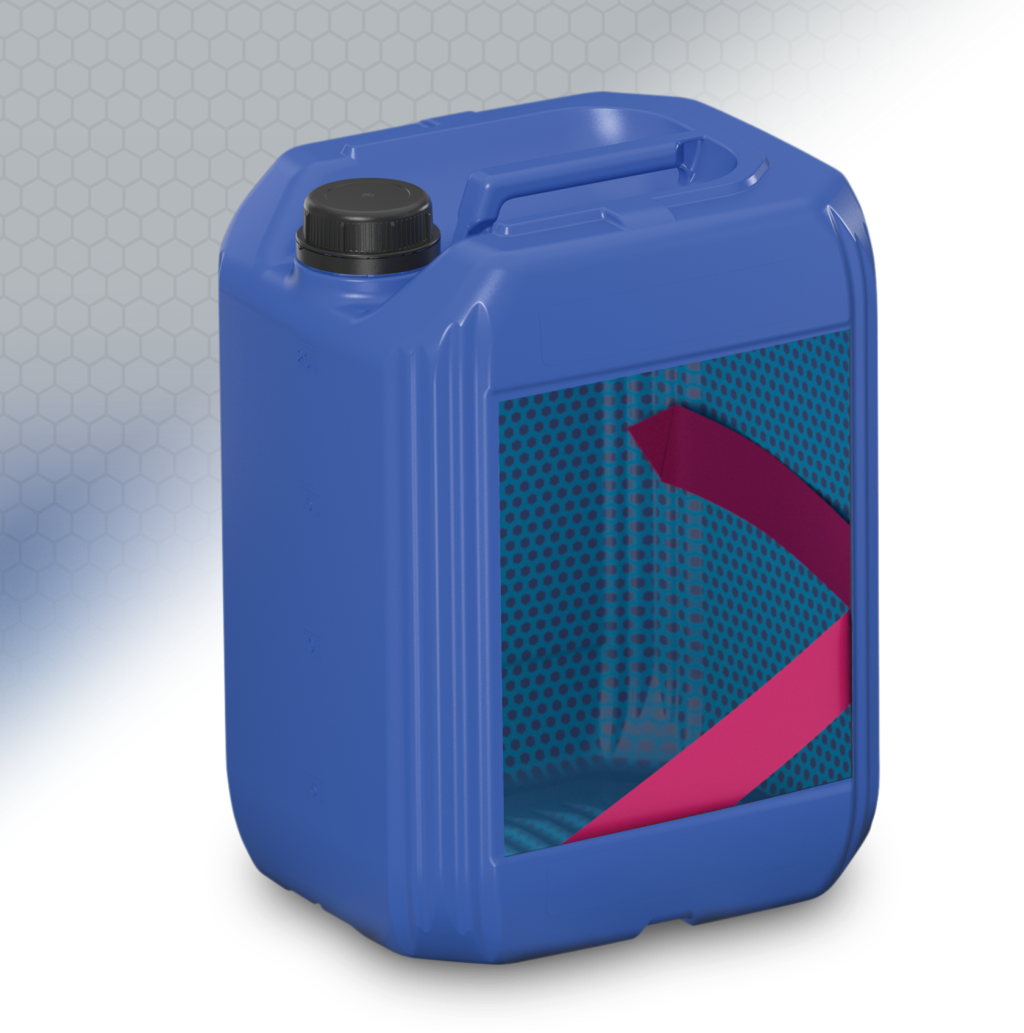

The inside and outside of the jerrycan are treated with a special fluorination process to provide a highly efficient permeation barrier layer:
