THE NEW SCHÜTZ SQ2 TIGHT-HEAD DRUM – PACKAGING EFFICIENCY SQUARED.

Space-saving design, suitable for many different applications and optimum reusability – our new SQ2 tight-head drum offers the highest efficiency, safety and resource conservation for daily use.


The resulting economic and ecological advantages combined with first-class product quality make the SQ2 tight-head drum a highly attractive packaging solution for a wide range of industries and filling products.


For agrochemical applications, for use with other hazardous filling products or for foods and technically demanding liquids – the closed discharge system and the optional EVOH barrier offer additional safety.

Datasheet SCHÜTZ SQ2 TIGHT-HEAD DRUM
Download PDF

Product Variants*

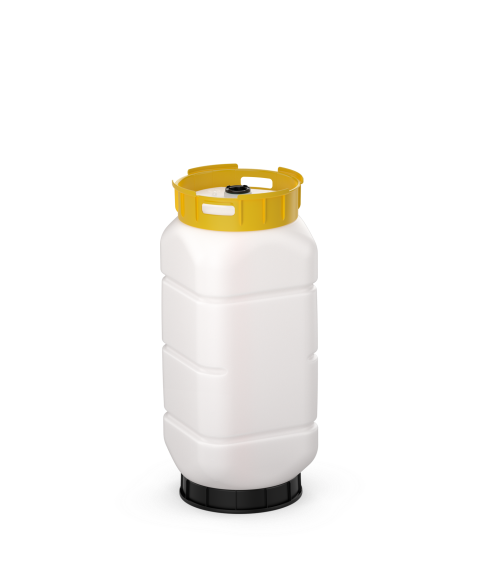

100 litres

SQ2 TIGHT-HEAD DRUM

Produktdetails
Exterior height975 mm
Exterior width/depth385 mm
Outer diameter top ring381 mm
CapBCS G2 x 5
Hazardous goods approval (min.)
with EVOH		UN 1H1/Y1.6/150/…
Hazardous goods approval (min.)
with EVOH
UN 1H1/Y1.4/200/…
Weight
7,40 kg
add to watchlist
Produktdetails
Exterior height975 mm
Exterior width/depth385 mm
Outer diameter top ring381 mm
CapBCS G2 x 5
Hazardous goods approval (min.)
with EVOH		UN 1H1/Y1.6/150/…
Hazardous goods approval (min.)
with EVOH
UN 1H1/Y1.4/200/…
Weight
7,40 kg
add to watchlist

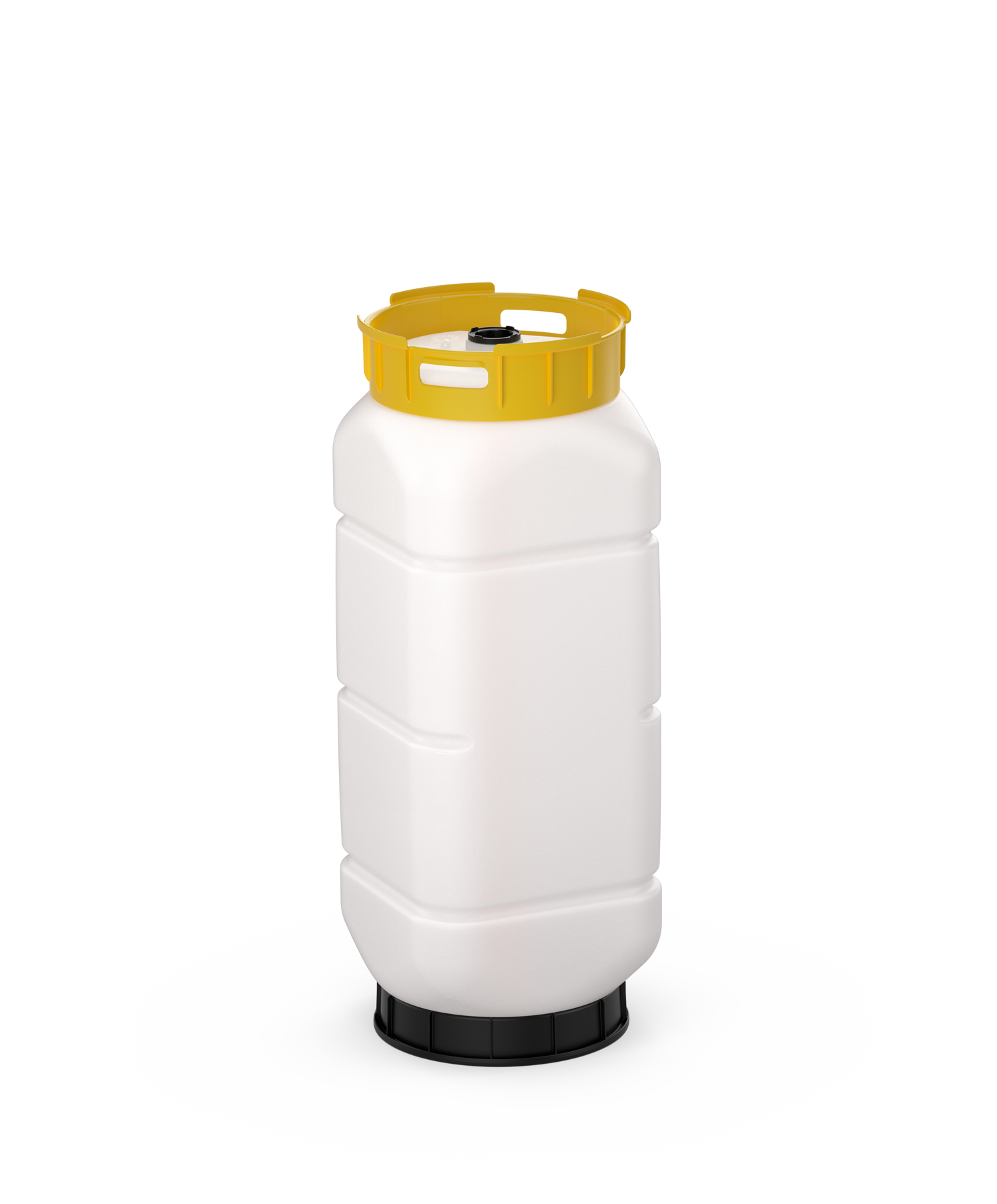

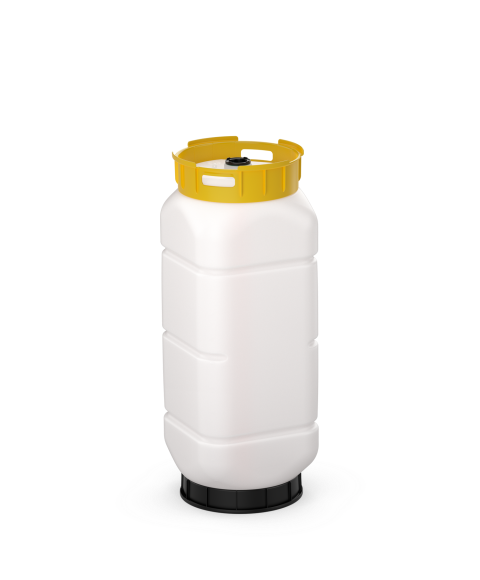

110 litres

SQ2 TIGHT-HEAD DRUM

Produktdetails
Exterior height1,048 mm
Exterior width/depth385 mm
Outer diameter top ring381 mm
CapBCS G2 x 5
Hazardous goods approval (min.)
with EVOH		UN 1H1/Y1.6/150/…
Hazardous goods approval (min.)
with EVOH
UN 1H1/Y1.4/200/…
Weight
7,85 kg
add to watchlist
Produktdetails
Exterior height1,048 mm
Exterior width/depth385 mm
Outer diameter top ring381 mm
CapBCS G2 x 5
Hazardous goods approval (min.)
with EVOH		UN 1H1/Y1.6/150/…
Hazardous goods approval (min.)
with EVOH
UN 1H1/Y1.4/200/…
Weight
7,85 kg
add to watchlist
Produktdetails
Exterior height975 mm
Exterior width/depth385 mm
Outer diameter top ring381 mm
CapBCS G2 x 5
Hazardous goods approval (min.)
with EVOH		UN 1H1/Y1.6/150/…
Hazardous goods approval (min.)
with EVOH
UN 1H1/Y1.4/200/…
Weight
7,40 kg
add to watchlist
Produktdetails
Exterior height1,048 mm
Exterior width/depth385 mm
Outer diameter top ring381 mm
CapBCS G2 x 5
Hazardous goods approval (min.)
with EVOH		UN 1H1/Y1.6/150/…
Hazardous goods approval (min.)
with EVOH
UN 1H1/Y1.4/200/…
Weight
7,85 kg
add to watchlist
*The drum types and filling opening models shown here comprise our standard line. We will be glad to answer your enquiries about customized designs and additional technical details regarding the drum types shown here.


Performance advantages compared with standard drums:

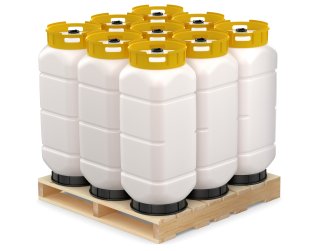

Thanks to the square cross-section, nine SQ2 tight-head drums
will fit on a pallet (1,165 x 1,165 mm). This corresponds to up to
990 litres of filling product and approx. 80 % more transport
volume in comparison to conventional drums!

The stable top ring with two grip holes facilitates easy manual handling and secure nesting for double stacking
The SCHÜTZ “dry-break” discharge valve protects against contact with the drum contents and product contamination.
The drum body is made of high-quality HDPE and has excellent resistance to chemicals and stress cracking.
Optional: An integrated EVOH barrier prevents the permeation of gases, solvents and flavouring agents.
The drum has a large, flat space
for labels and markings.
The shock-absorbing SCHÜTZ Dip-Tube
sits at the lowest point of the drum geometry and guarantees optimum residual emptying.
