 SCHÜTZ SSF – tried and trusted corrugated tight-head drums.

Absolute security, tested and proven a million times around the world: corrugated tight-head drums are ideally suited for transport of liquid hazardous goods in UN packaging groups I, II and III.

Advantages:

  • Cold-rolled thin sheet DC01Am compliant with DIN 10130
  • Welded shield, flattened welding seam at both fold and border areas
  • Bottom and lid with triple safety seam. Two rolling or negative hoops, additional reinforced hoops available on request
  • Processing of varying material thicknesses: 0,8 – 1,2 mm
  • Safety screw fittings G2 and G3/4, on opposite sides of top
  • Additional filling hole NW230 (216.5 litres special) available
  • Inner surface protection: plain steel or lacquer-lined, prepared for the filling goods by stability test
  • Exterior: coating in the colour of your choice, solid or multiple colours, tops and shells of corrugated tight-head drums can be screen-painted
  • Special designs available on request
Brochure SCHÜTZ PE Drums | Steel Drums
Download PDF

Product Variants*

216.5 litres
216,5 LitresSSF CORRUGATED TIGHT-HEAD DRUMS
Product details
Exterior height884 mm
Exterior diameter585 mm
Hazardous goods certification (min.)UN 1A1/X/250/
add to watchlist
Product details
Exterior height884 mm
Exterior diameter585 mm
Hazardous goods certification (min.)UN 1A1/X/250/
add to watchlist
216.5 litres special
216,5 LitresSSF CORRUGATED TIGHT-HEAD DRUMS
Product details
Exterior height884 mm
Exterior diameter585 mm
Hazardous goods certification (min.)UN 1A2/Y1.8/200/
add to watchlist
Product details
Exterior height884 mm
Exterior diameter585 mm
Hazardous goods certification (min.)UN 1A2/Y1.8/200/
add to watchlist
Product details
Exterior height884 mm
Exterior diameter585 mm
Hazardous goods certification (min.)UN 1A1/X/250/
add to watchlist
Product details
Exterior height884 mm
Exterior diameter585 mm
Hazardous goods certification (min.)UN 1A2/Y1.8/200/
add to watchlist
*The drum types and tight-head variations shown here comprise our standard line. We will be glad to answer your enquiries about customized designs and additional technical details regarding the drum types shown here.

Use of stirrers



Tight-head drums are common, medium-sized containers that are used for a wide variety of liquid filling products. However, a standard tight-head drum is unsuitable if the filling product requires stirring prior to discharge or use.


An example of a product solution:

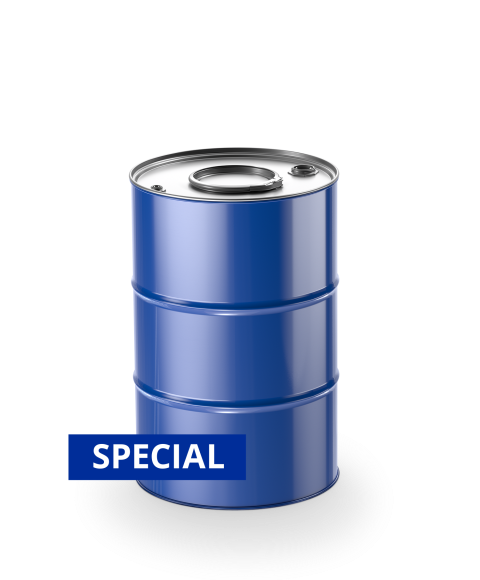

SCHÜTZ SSF 216,5 L SPECIAL

  • Designed specially to enable fast, convenient stirring processes directly inside the drum
  • In addition to the two bung holes, this version has a DN 230- opening on the top
  • Standard stirrers with folding wings can be easily inserted

add to watchlist

INDIVIDUAL BRANDING




Emphasise your brand with an unmistakable drum design:


  • We can produce steel drums with high-quality stove enamelling in any colour according to your exact wishes.
  • Additional markings – e.g. your logo – can be printed in a single or multi-colour screen print process.
